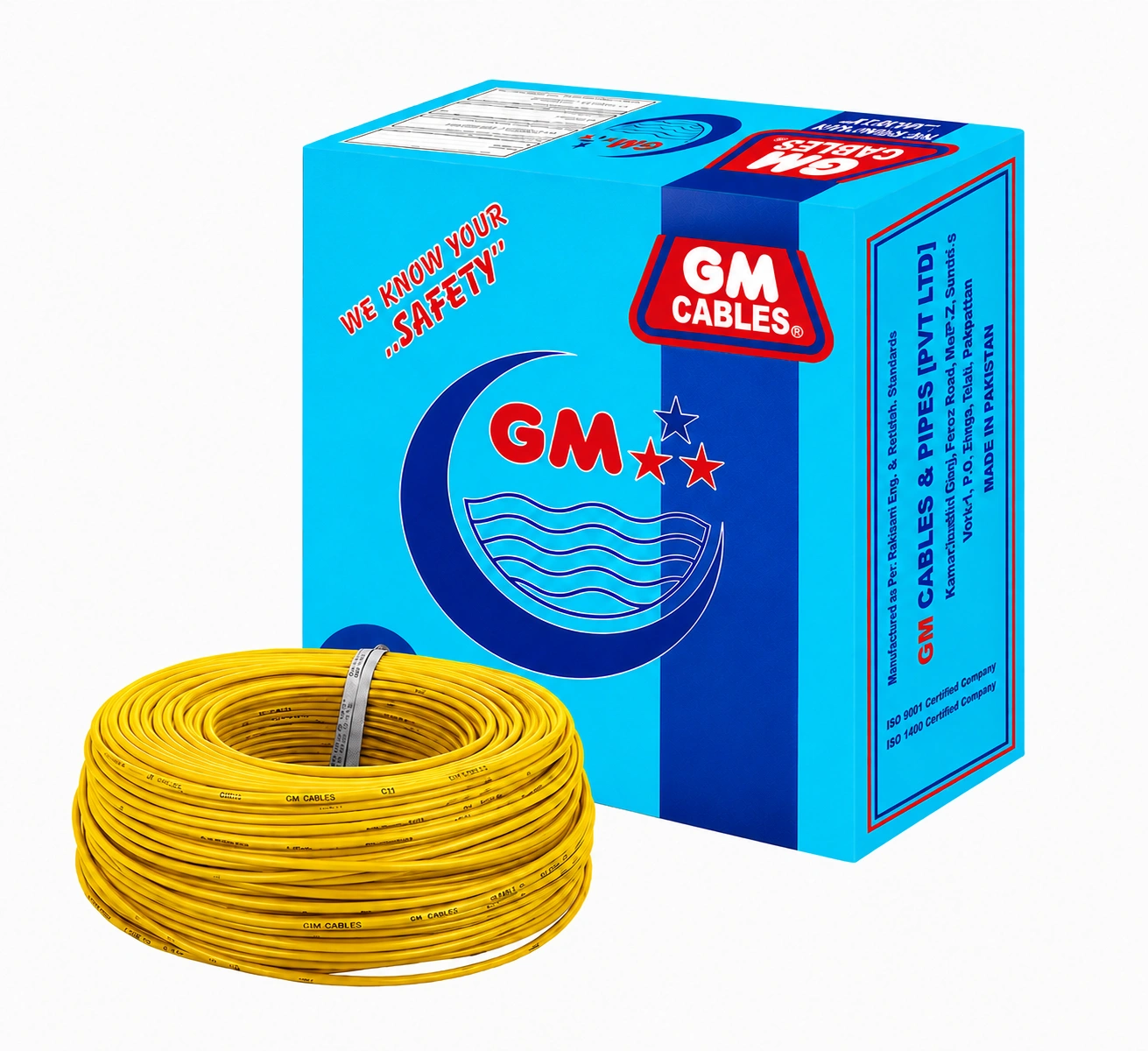

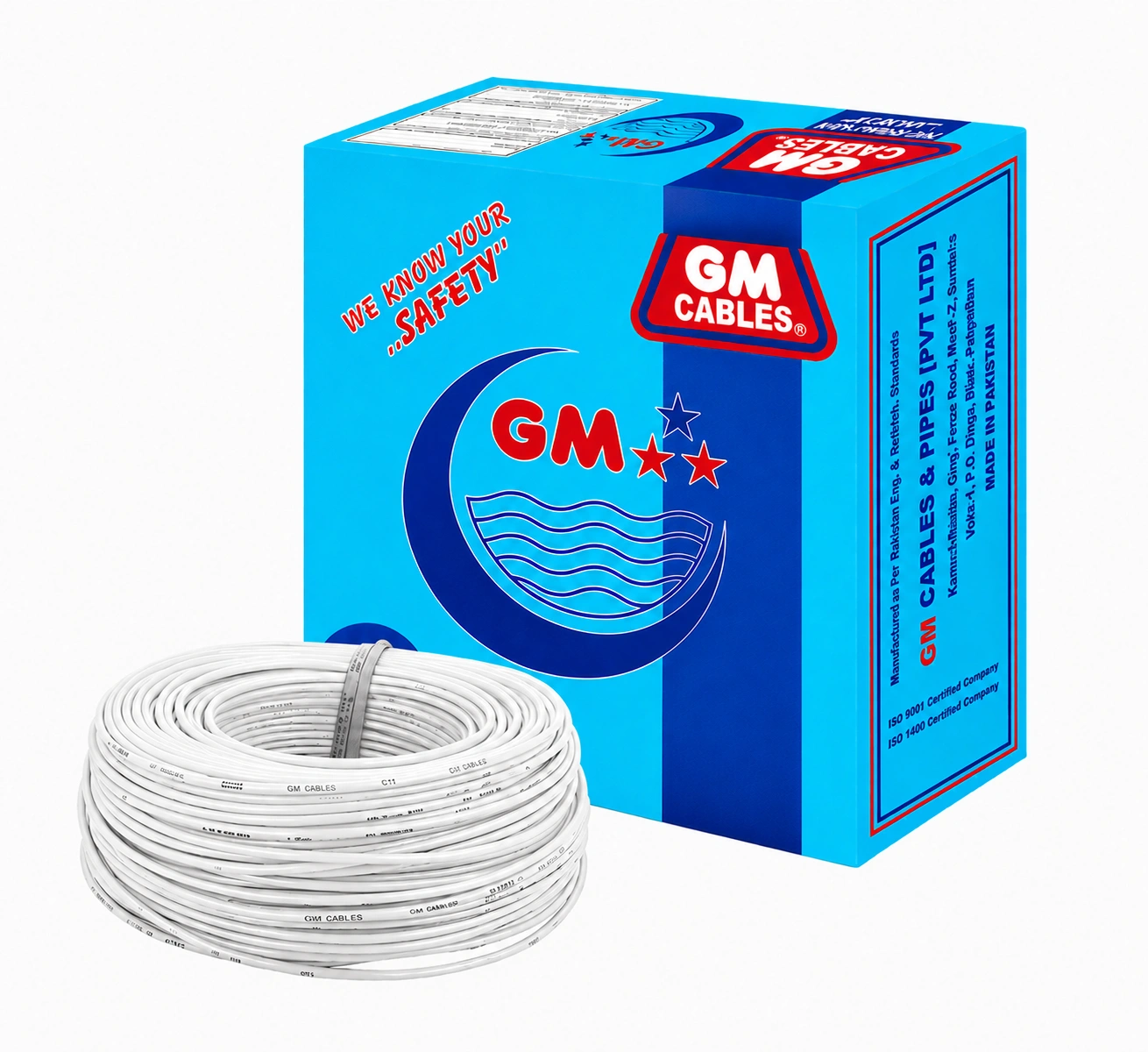

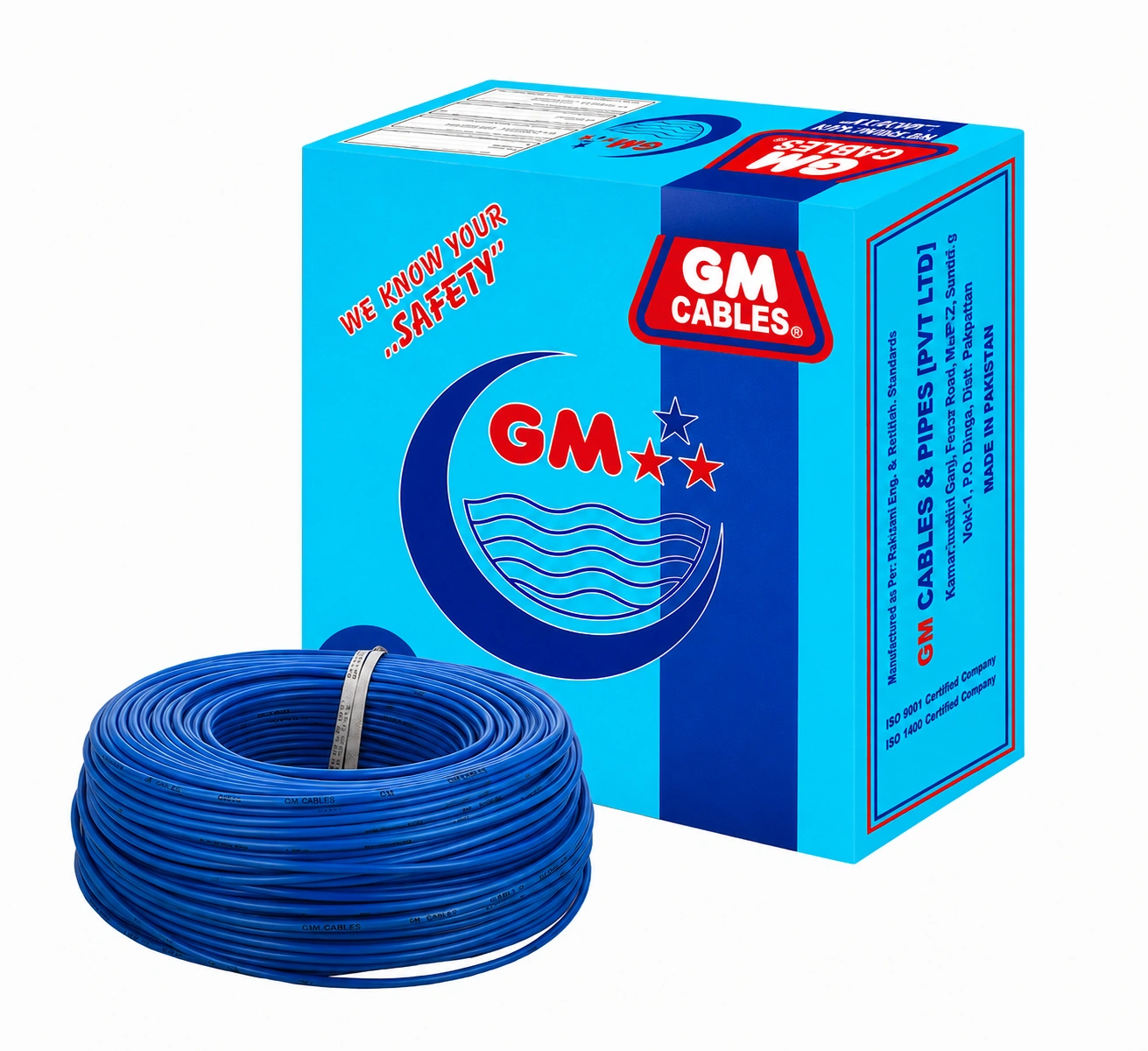

GM 10mm² Flexible Cable
Note:
- Color: Red, Black, Blue, Yellow, Green , White
- Size: 90 Meter
- Delivery Days: 1-2 Days
Delivery Charges based on Location
Note: GM Flexible Wiring Cables BSS-6500 (1-Core Cu/ PVC 450/750V) (2-Core Cu/ PVC 300/500V Flat) (3-Core Cu/ PVC 300/500V Round) (4-Core Cu/ PVC 300/500V Round)
Color *
Core *
Category Flexible Cables
GM 10mm² Flexible Cable is for use with compatible equipment that requires a larger conductor than conventional rigid general wiring and has higher flex ratings. Can contribute to the ease of routing and termination when the connected equipment allows for flexible cable.
There are different voltage ratings and outer constructions for single-core and multi-core versions. When using, all the following items should be checked: current demand, bending radius, protective device, terminal capacity, installation environment.
Key Specifications & Features:
Conductor Size: 10mm²
Conductor Type: Fine-stranded flexible copper
Standard: BS 6500 range
Single-Core Voltage: 450/750V
Multi-Core Voltage: 300/500V
Construction: PVC insulated with sheathed Multi-core options
Average Coil length: 90m
Use: Larger movable equipment connections.
