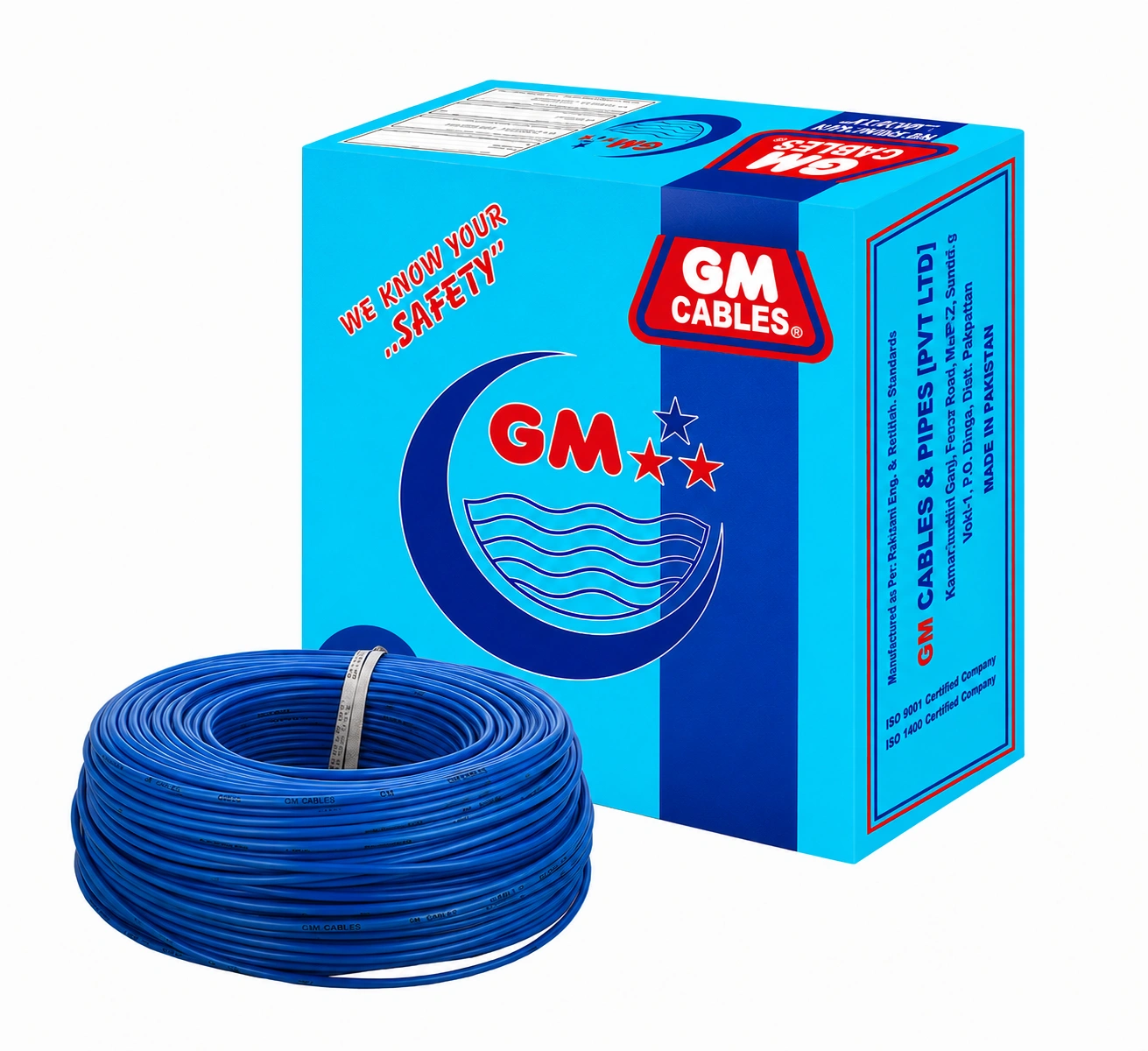

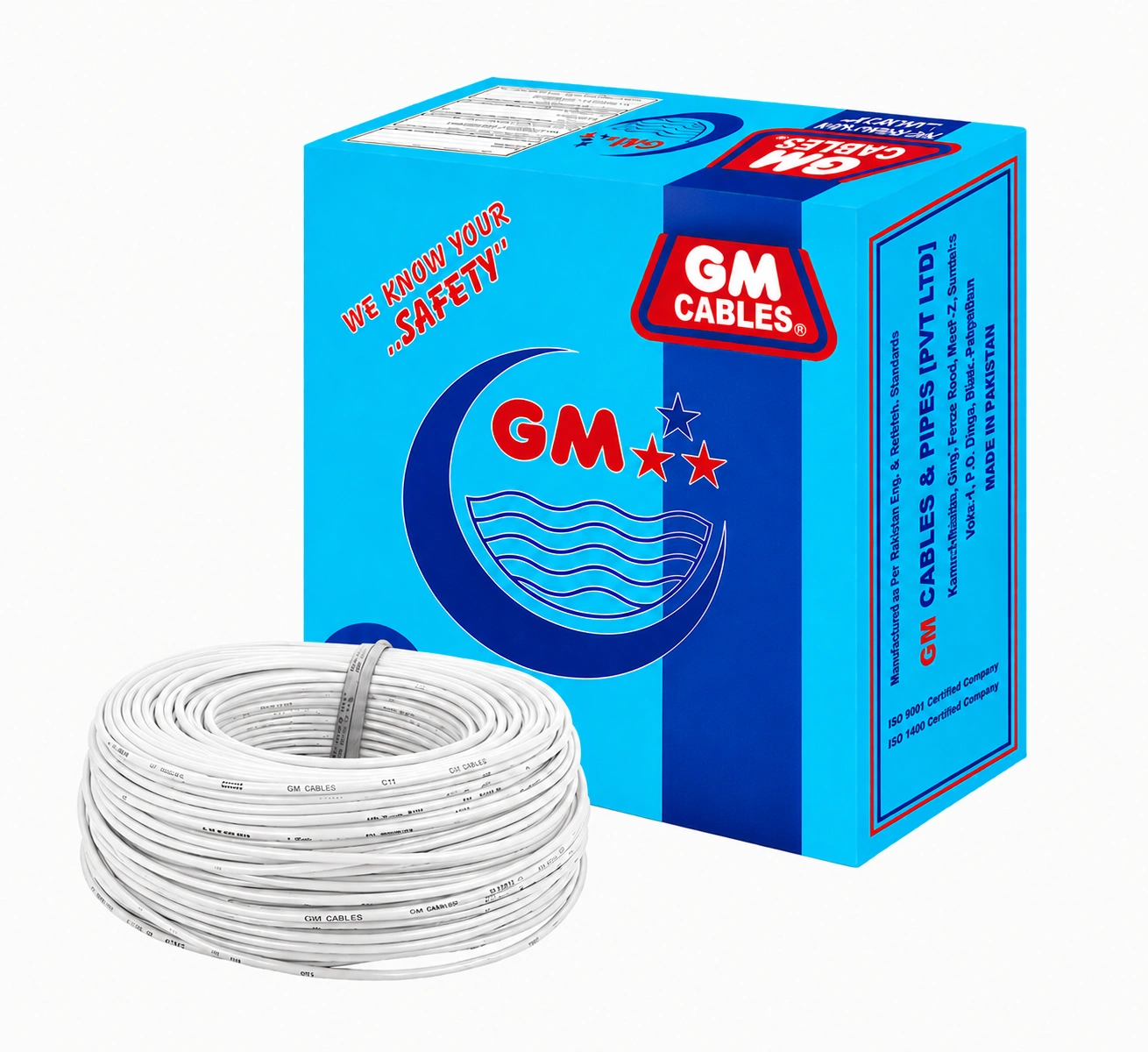

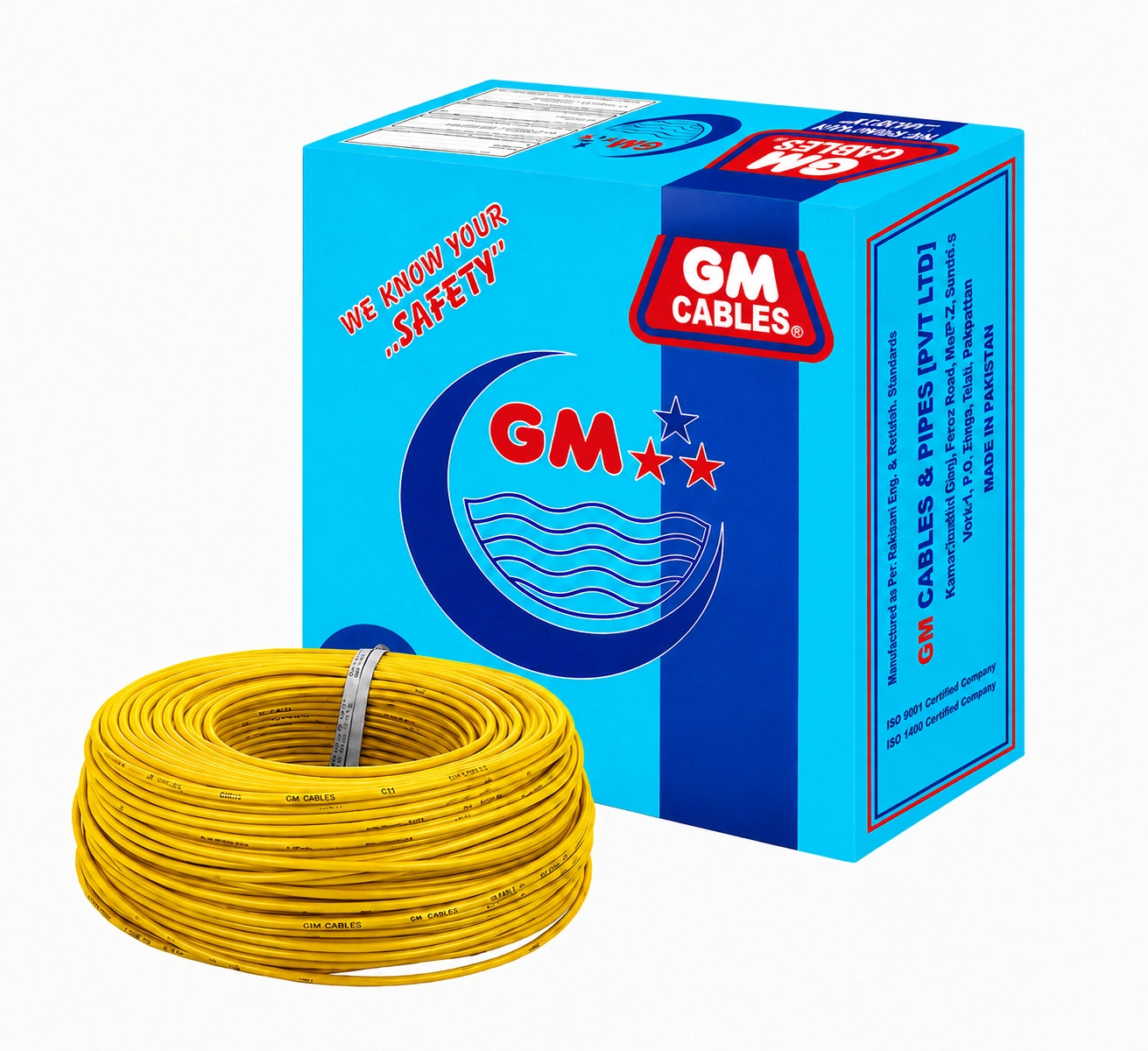

Order GM 7/.029 General Wire for Power Circuits

GM 7/.029 General Wire includes seven strands of copper, each 0.029 inches in diameter. It has a larger conductor area and can be used for circuits with compatible fuses that have a higher capacity than the 3/.029 fuses.

The stranded design ensures that conduit bending will be easier while still keeping it a fixed-wiring product. Before being used, the breaker coordination, route length, and installation condition should be checked.

Key Specifications & Features

• Imperial Size: 7/.029

• Conductor Construction: Seven copper strands

• Individual Diameter: 7.3 mm

• Standard: BS 2004 range

• Voltage Rating: 250/440V

• Insulation: PVC

• Typical Coil Length: 90 metres

• Application: Compatible with fixed power wiring
