Order GM 2.5mm² Flexible Cable for Appliance Wiring

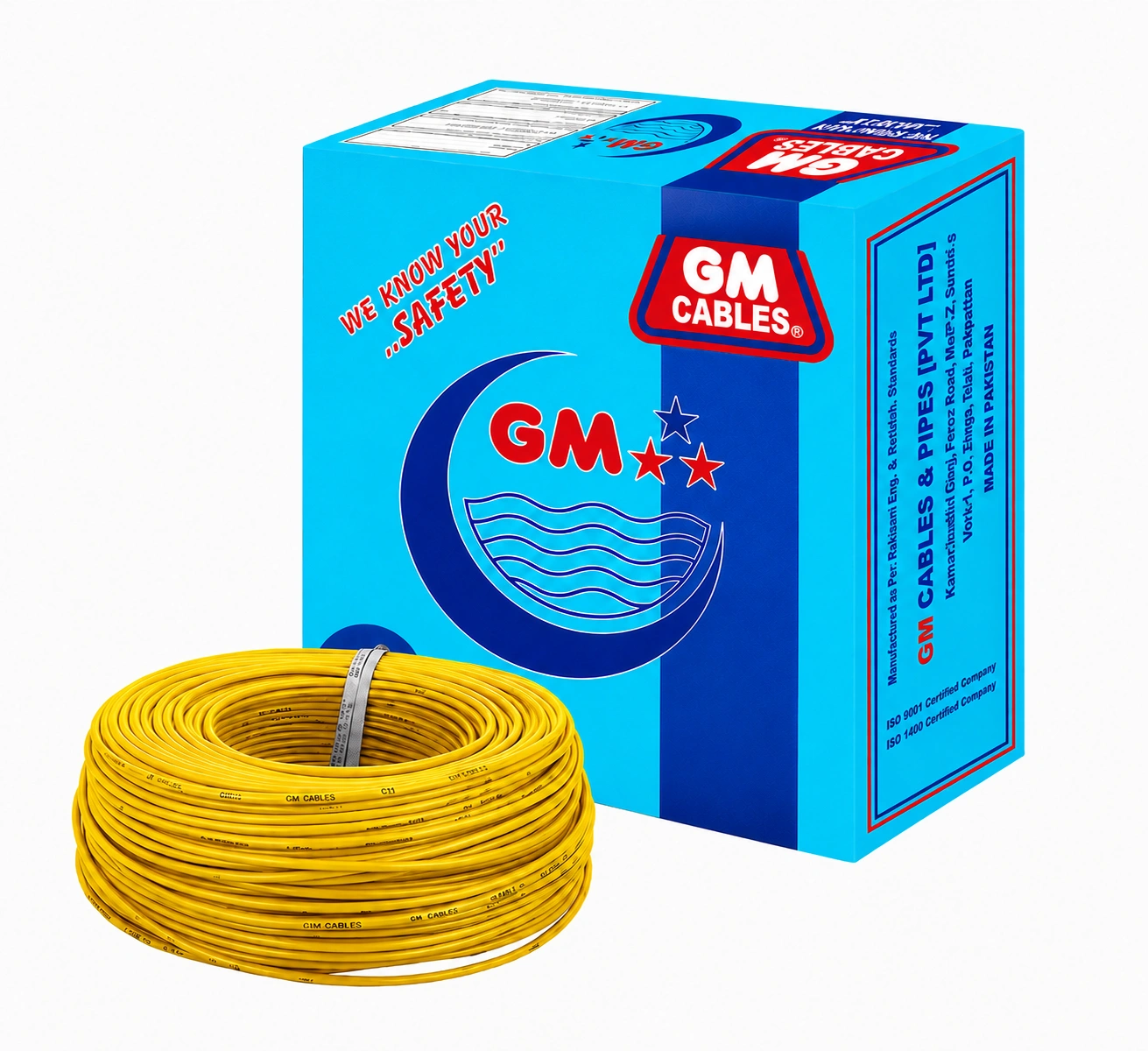

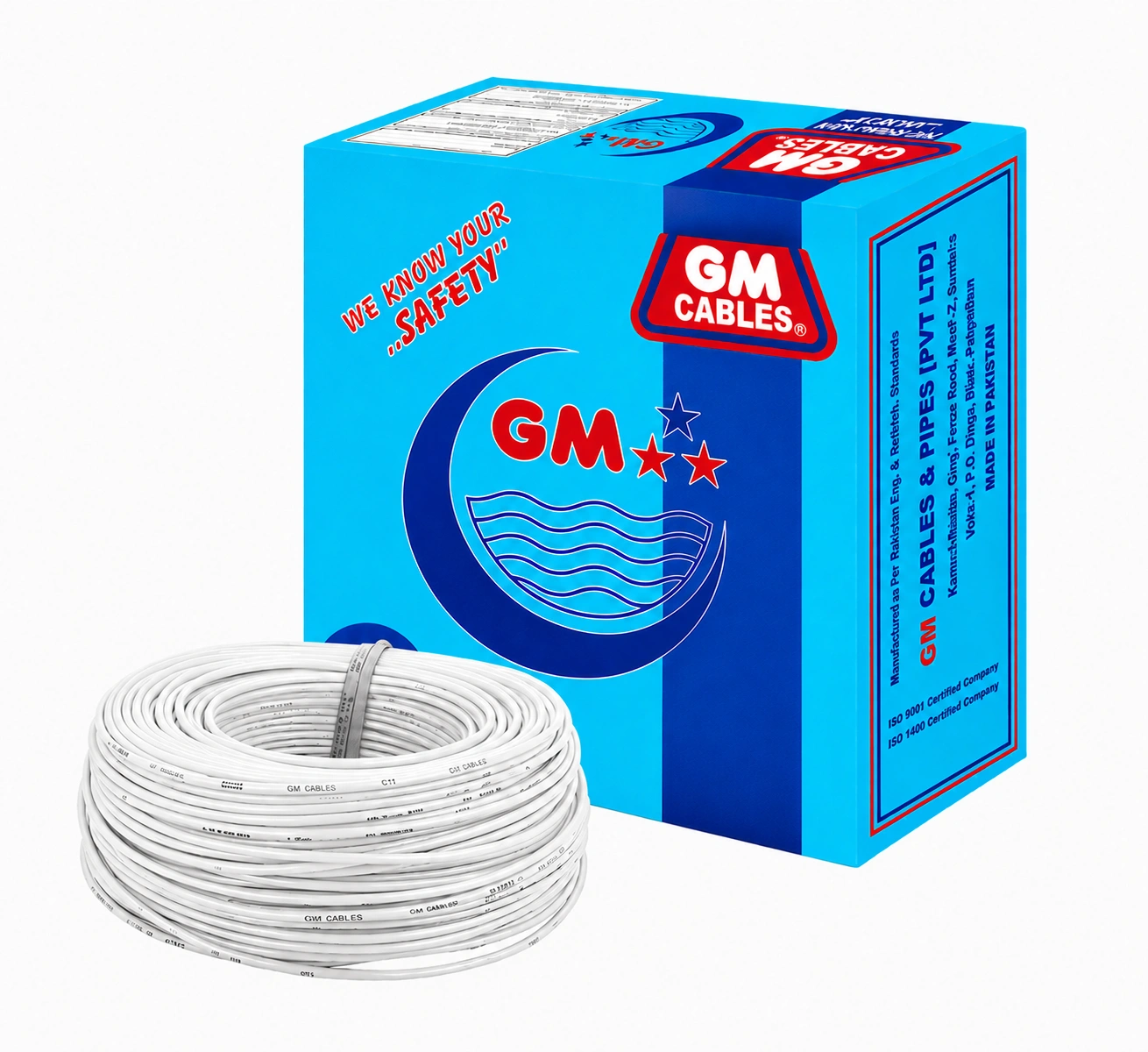

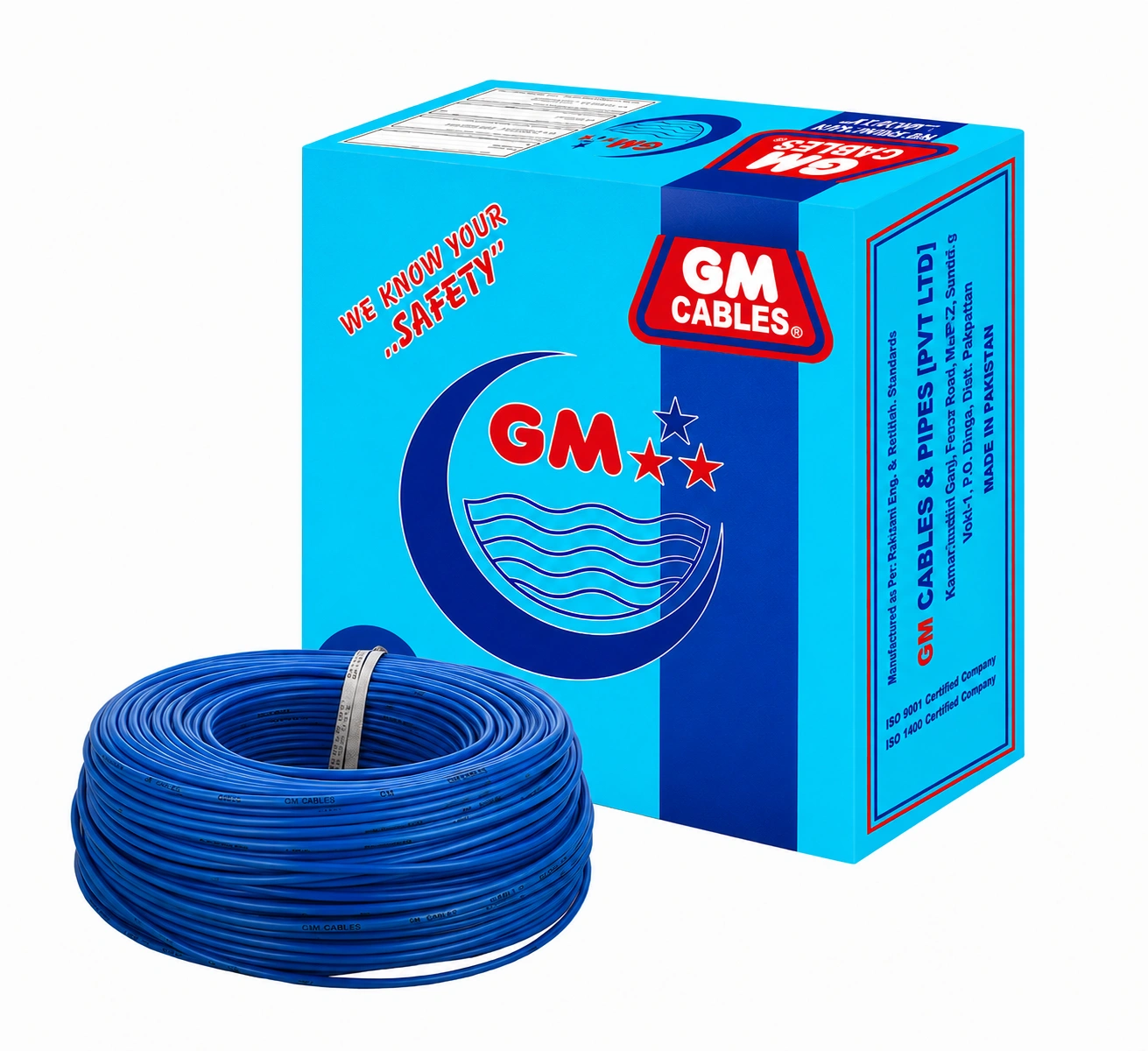

GM 2.5mm² Flexible Cable is designed for use in compatible equipment and appliances that call for greater conductor area than lighter flexible cables and can be used in controlled situations. It is made from multi-stranded copper, which facilitates ease of movement, routing and termination.

There may be single-core to multi-core options that can be given within the flexible range. Cable arrangement has to be matched with the terminals of the installation and the surroundings of the equipment regarding earthing requirements and anticipated current load.

Key Specifications & Features

• Conductor Size: 2.5mm²

• Conductor Type: Fine-stranded copper

• Standard: BS 6500 range

• Voltage: 450/750V single-core

• Multi-Core Voltage: 300/500V

• PVC Insulation: With sheath on multi-core options

• Typical Coil Length: 90 metres

• Applications: Heavier appliance and equipment leads
